Cylindrical Speed Lane Turnstile Gate 304 SUS Access Gate Swipe
Card Face For Building Office
Introduction
The fast-pass Speed Lane Turnstile Gate is a high-end swing gate
with a novel appearance. The fast-pass Speed Lane Turnstile Gate
adopts a non-destructive mechanical structure design, a fully
automatic movement, and a modular and intelligent design. The Speed
Lane Turnstile Gate has the function of automatically closing the
door when power is on, automatically opening the door when power is
off, and has a self-checking function; (it can be controlled
remotely to close the door or controlled by a ticket card). The
movement locking mechanism adopts a solenoid valve clutch brake,
which has a buffering function. The Speed Lane Turnstile Gate rod
moves forward after impact. At a certain angle, under the action of
the encoder, the fast access gate can accurately find the zero
position.
1. The control part changes the structure of the microcontroller
and uses a 32-bit microprocessor to increase the memory capacity
and improve the machine's processing adaptability.
2. The electronic beam adopts the electron beam that is resistant
to strong light and high temperature to improve the sensitivity of
the gate.
3. Add fire mode, continuous swiping mode and memory mode. The
fast-pass gate has faster passing speed and smoother traffic. The
fast-pass gate is easy to use and maintain, has stable and reliable
quality, preferential original price, and timely service.
Parameters:
| Framework | 304 Stainless Steel |
| Dimensions | 168×1050mm |
| Weight | 90KG |
| Arm Length | 500-900mm |
| Dry Contact | 12V |

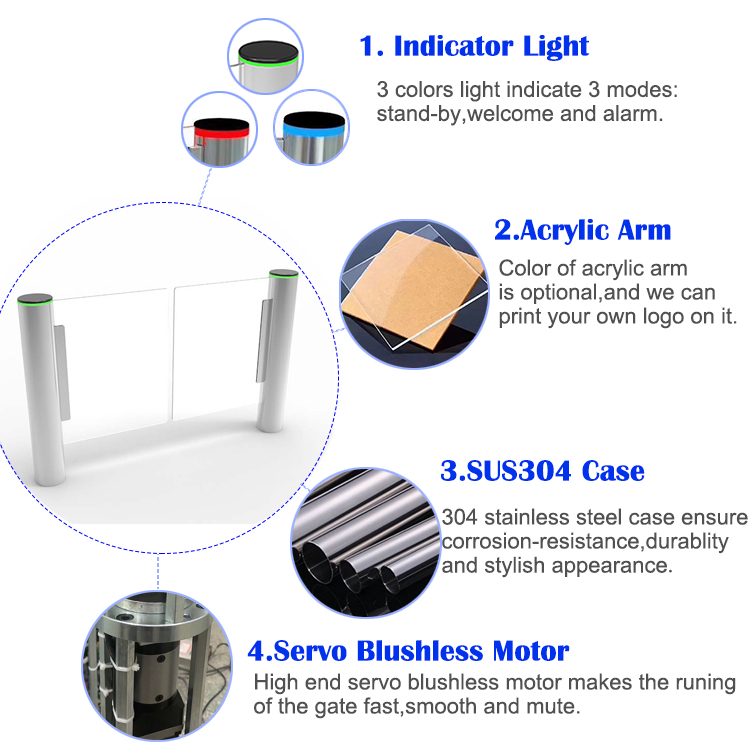

| LED indicating light | One |
| Card-reading window: | Two |
| Rated power | 120W |
| Operating temperature | -25℃ ~ +60℃, RH ≤90% |
| Related humidity | ≥90%RH |
| Comunication Interface | RS485,distance ≤1200m |
| Power supply | AC 220V/110V ±10% 50/60MHZ (optional) |
| OpeningTransit speed: | 30—45persons per minute |
| Closing Transit speed: | 25-35per minute |
Functions of fast access turnstile gate:
1. Fast-pass turnstile gate passage mode: The fast-pass turnstile
gate passage speed is fast and sensitive, and the opening speed is
twice as high as that of ordinary swing gates. The access method is
two-way controlled, with card reading to enter and induction to go
out; it can also be that card reading is required to enter, and
free passage through induction when exiting. Some environments do
not require users to present valid documents when going out. Then
there is the free passage mode. In some places, you can enter and
exit at will during a specific period, that is, the normally open
mode, but after this period, the access is controlled.
2. Illegal intrusion and anti-collision function: The fast-pass
turnstile gate has many effective recognition devices for shooting.
Each shooting can accurately record your location at the gate and
determine any invalid intruders. When someone presents an
unauthorized ID or even a fake ID, our detection equipment
identifies your location at the gate and, since detected, can block
the illegal intruder from entering. Someone also tried to follow
him. When he tried to break in when the gate was still open but not
closed, the swing arm of the fast track gate stopped in a half-open
state. Whether it is an invalid ID or tailgating, our gates will
alert users and security personnel with sound and light.
Optionally, channels can be added with notification outputs, remote
alarms, video recording, and other devices.
If someone illegally collides with the gate, the gate will
automatically lock. Even if the swing arm is kicked, causing the
swing arm to deviate from the zero position (middle position), the
external force will be removed and the gate will automatically
reset. The gate will have sound and light to remind the user and
security personnel.
3. The fast-pass turnstile gate has a memory function: multiple
valid cards can be read in a short period of time, and the passage
will remain open until a corresponding number of people pass
through. Of course, the user's access status must be consistent
with the direction of card reading and the opening direction of the
swing arm, otherwise the alarm state will be triggered. Another
type of fast passage means that when the blade is closing, once a
valid card reading is sensed, it will stop closing and quickly open
to allow passage. The next user does not have to wait for the
previous user to pass. The channel is closed before reading the
card. This greatly improves the passage rate of the channel. The
fastest can pass 35-45 people per minute.
4. Fire linkage function: The fast access turnstile gate is safe
and reliable. In the event of an emergency such as a power outage
or fire, the emergency input is triggered, the swing arm of the
speed gate is released, and can be pushed open with a gentle hand,
allowing free passage until the emergency is lifted. The blades
will then return to the closed position. If the emergency is a fire
alarm, the blocking blades automatically open toward the exit,
allowing the user to quickly exit. After the fire alarm is lifted,
the channel automatically resets and closes, returning to normal
working conditions.
Turnstile Dimension:
Typical application:
⊙Office spaces: smart buildings, business buildings, government
agencies, factories, etc.
⊙Scientific and educational units: schools, colleges, research
institutes, libraries, etc.
⊙Commercial service places: supermarkets, shopping malls, hotels,
clubs, banks, etc.
⊙Residence place: residential area, community, apartment,
dormitory, etc.
⊙Transportation stations: bus stations, train stations, subways,
airports
⊙Scenic spots: scenic spots, playgrounds, theaters, gymnasiums

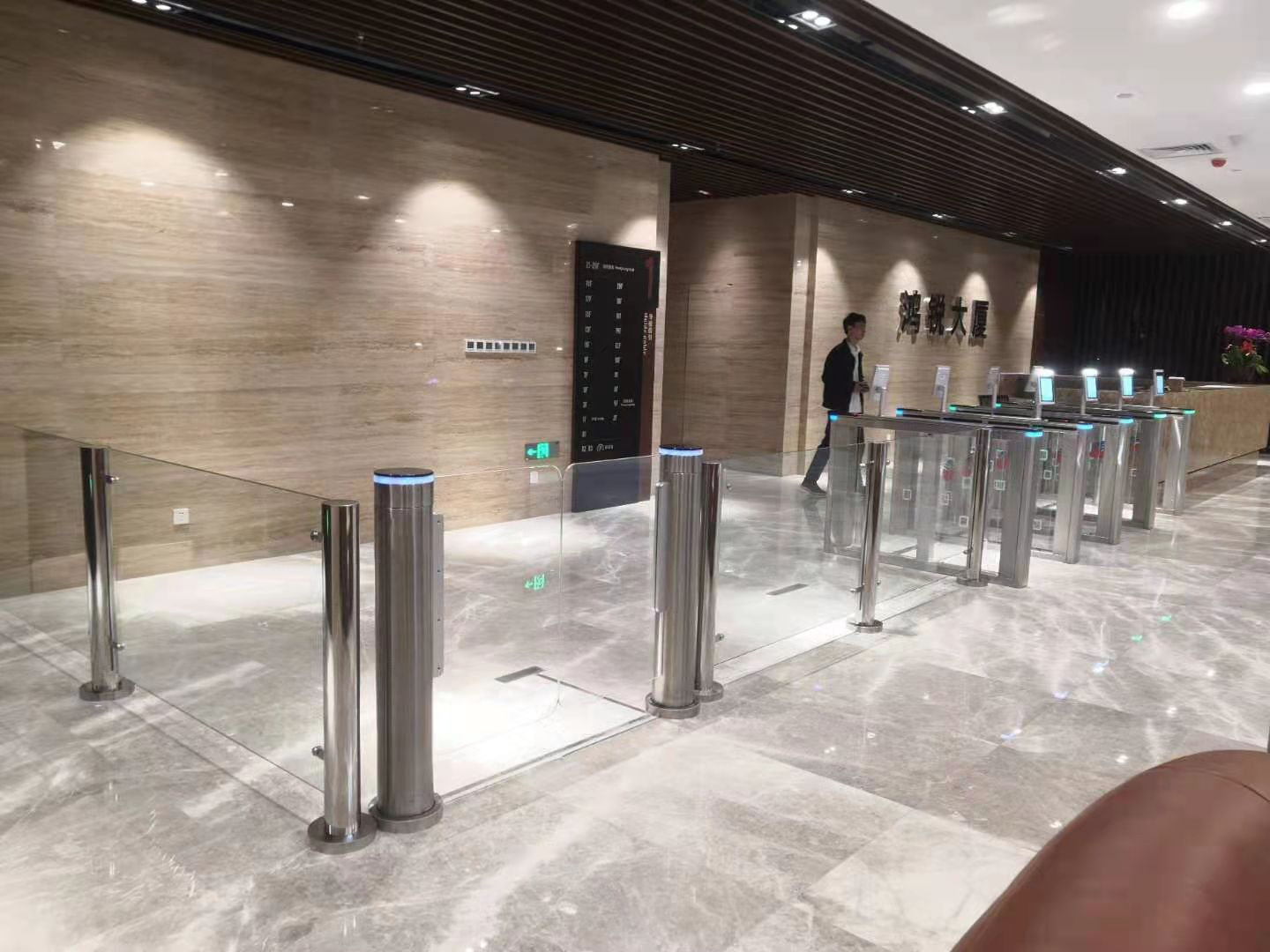

Case picture:
