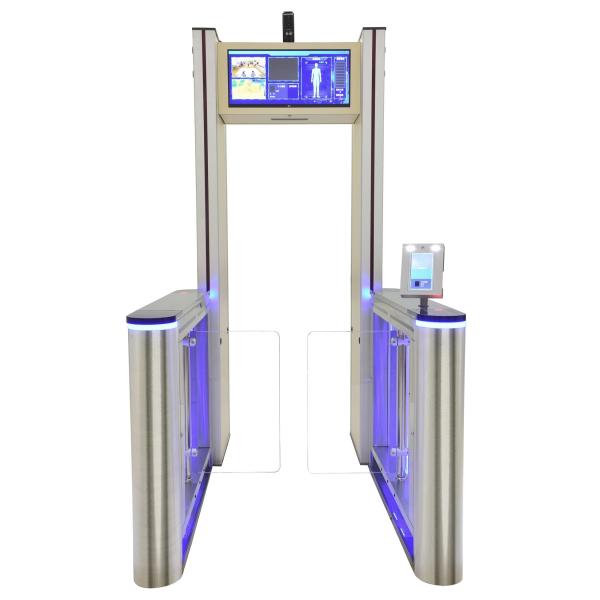

Product Introduction
Zento Security System has launched a new generation of integrated
intelligent security access control system, which integrates
thermal imaging temperature measurement, human identification,
access gates, and metal security gates into one through the Android
system. This information management platform can effectively
improve the quality of the security control of schools, hospitals,
supermarkets, prisons, courts, enterprises, exhibition halls, and
conference centers, and improve the efficiency of security
inspections, and save labors.
Product advantages
* l Andriod system, strong stability, extensive extended functions
* l Intelligent information platform, unified management of all
integrated functions
* l 29-inch large screen display, visualized information is clear
at a glance
* l Support the identification and comparison of second-generation
resident ID card information
* l Integrated thermal imaging temperature measurement, fast,
comprehensive and not easy to miss
* l Integrated channel wing gate, providing an orderly and
civilized way of passage
* l Using ultra-wide door body, beautiful and stable appearance
* l Support for filtering and testing of metal items, significantly
improving the quality and efficiency of safety inspections
* l The human-computer interaction interface is more convenient and
faster.
Features
Offline identification: No need to connect to the Internet, you can compare whether the
subject is consistent with the second-generation resident identity
card information offline.
High-end access gate: When personnel enter, the gate will automatically open for 5
seconds after the real-name system comparison is successful. When
personnel come out, the gate will automatically open after sensing
the human body.
Thermal imaging temperature measurement: Support 24-hour online non-sensing temperature measurement. After
the real-name system is successfully compared, the system
automatically collects the temperature quantity.

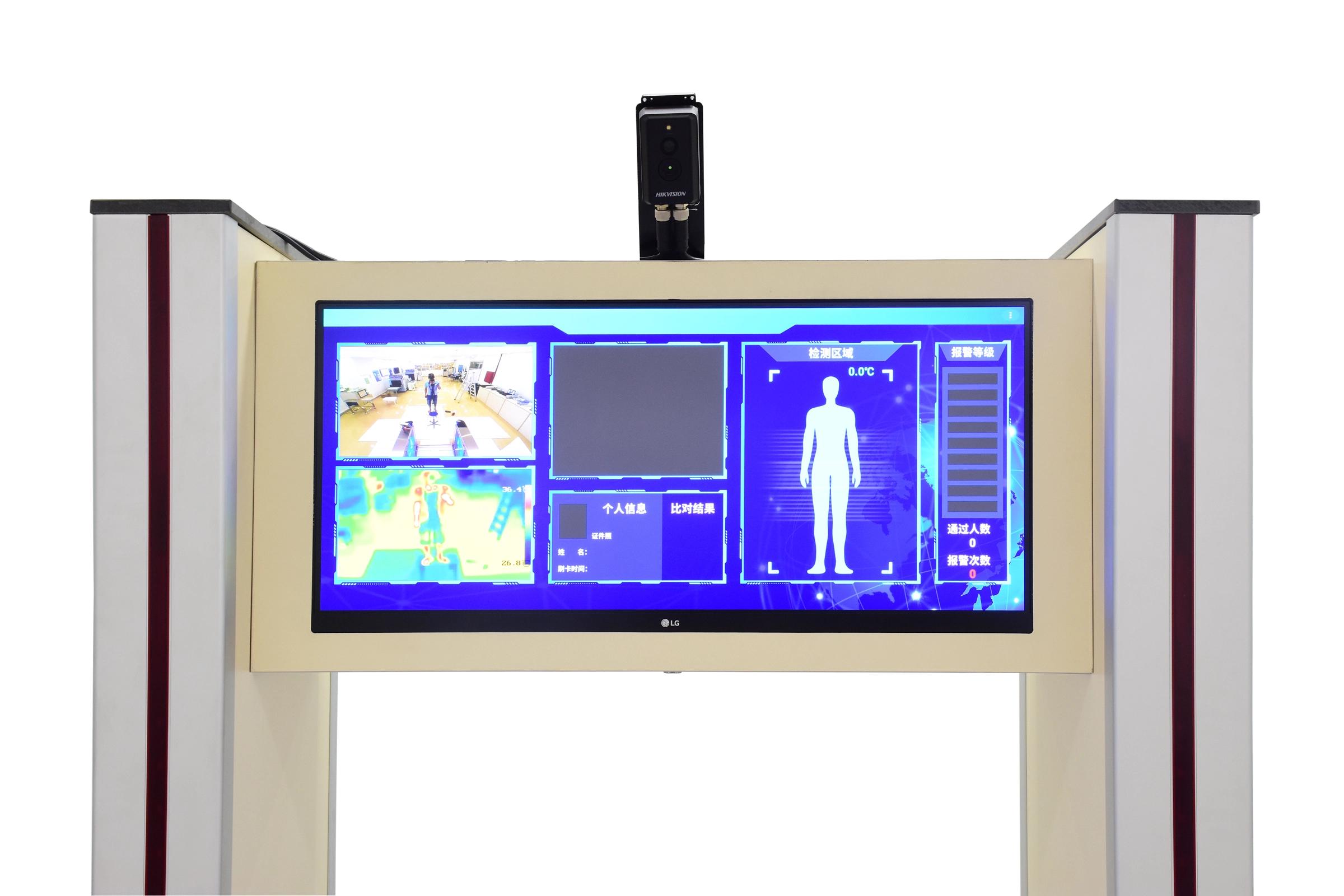

Large screen display: 29-inch display, real-time display of visual
image data such as on-site heat map, metal location map, metal
amount, identity comparison information, and snapshots.
Anthropomorphic metal safety display: Real-time metal safety information in the exhibition hall with
super-large human body images, visually showing real-time images of
metal location and metal strength.
One-key on/off: The system is equipped with one-key on and off functions to
effectively simplify the operation steps and reduce the difficulty
of use.
Door body material: The exterior is made of HPL material, which is exactly the same as
the imported brand material, beautiful, generous, fireproof,
corrosion-proof, moisture-proof and anti-collision, and does not
deform.
Anti-vibration design: The world's original anti-vibration design
will not cause false alarms under wind or man-made shaking.
Detection accuracy: The highest sensitivity detects a one-yuan coin in the middle of
the door without underreporting and collusion. Excluding the
influence of belt buckles, leather shoes, bras and other items, it
can detect more than 150 grams of copper, aluminum, zinc and other
precious metals or controlled knives and guns.
Anti-interference design: According to the surrounding environment, the frequency is
automatically set to avoid interference when the machine is turned
on. When multiple doors work side by side, they move closer to each
other, and there is no obvious impact on the detection performance.
Location display: simulates the whole area of the human body defense area,
suspicious objects can be accurately displayed in each area.
Four-side positioning lights: LED lights on all four sides of the door, which can intuitively
display the area of prohibited items through the positioning
lights, and the viewing angle can reach 360°
Operation mode: Human-computer interaction interface, use the mouse to set the
interface parameters, which is convenient and quick.
Metal filter: support conventional small metal items filter function, can
customize mobile phone smart filter function, smart filter
daily supplies.
Gross Weight | 70kg |
Power Supply | AC85V~264V |
Working Temperature | -20°C~ +50°C |
Working Frequency | 4KHz~8KHz |
External Side | 2200*800*580mm |
Internal Side | 2010*700*500mm |
Package Size of Door Panels | 2430*width 1085*depth 650mm |
Package Size of Control Unit | 2000*width 800*depth 645mm |
Performance parameter
Smart identification control terminal module
Input voltage DC12V
Power consumption 20W
Operating system Andriod 7.1.1
Display 7-inch LCD display
Certified camera Binocular camera 2 million HD camera
ID card recognition Built-in second-generation resident ID card
reader module
Swing turnstile gate
Input voltage 100V~240V
Equipment power 35W
Response time 0.2S
Passing speed normally open 50 people/min, normally closed 35
people/min
Dimensions: length 1200mm*width 200mm*height 980mm(turnstile size
can be optional)
Weight 80kg
Thermal imaging temperature measurement module
Thermal imaging resolution 120x160
Temperature measurement range 30-45℃
Temperature measurement accuracy ±0.3℃
Temperature measurement distance 0.3~2m can be set
Working temperature 10℃~35℃ (precise temperature measurement)
Smart security gate
Power supply 187V~242V, 50/60HZ
Power consumption 35W
Display 29 inches
Dimensions: height 2430*width 1085*depth 650mm
Channel size height 2000*width 800*depth 645mm
Shipping weight about 160kg
