    Dual Energy Airport Security X Ray Machine For Baggage / Luggage CE FCC

    Ask Lasest Price
    Brand Name : zento
    Model Number : 8065
    Certification : CE,FCC,RoHS,ISO9001,FCC&GB-15210-2003
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 400 unit per month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

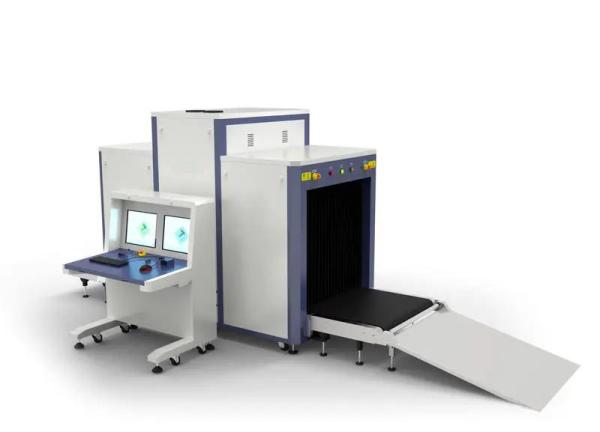

    Dual Energy Airport Security X Ray Machine For Baggage / Luggage CE FCC

    High quality Dual Energy Security X-ray Machine and Baggage & Luggage Scanner - Biggest Manufacturer with CE FCC FD


    8065 X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.

    8065 belongs to the “X-Ray Luggae Scanner” product family, which are designed for the security inspection of the big baggage, luggage and cargo etc.

    It’s the entry-level model for the big x-ray luggage scanners.

    It’s widely used in the airport, logistics, subways, bus station, hotels etc.



    Product highlights

    * Multilingual operation
    * Automatic built in test and self diagnosis
    * Secure access Key
    * Uninterruptable power supply (UPS)
    * Threat alert and material classification
    * Auto archiving
    * Network-Ready
    * Energy saving design
    * One key turn off
    * Drugs and explosives inspection
    * Indication of the date and time
    * baggage counter

    Technical Data

    NO.

    Item

    Tested Value


    1

    Wire resolution

    36

    AWG

    2

    Penetration resolution

    30

    AWG

    3

    Spatial resolution

    Vertical: 1.3 Horizontal: 1.3

    mm

    4

    Penetration

    34

    mm

    5

    Organic matter resolution

    1-120

    mm

    6

    Grayscale, mixture resolution

    1-60

    mm

    7

    Inorganic resolution

    0.2-14

    mm

    8

    Effective material resolution

    Compliant with GB15208.1-2018 standards

    9

    single dose

    ≤4.0

    uSv(uGy)

    10

    leakage dose

    <0.5

    uSv/h(uGy/h)

    11

    noise level

    No more than 60dB

    12

    conveyor belt speed

    Around 0.2 m/s

    13

    Conveyor belt maximum load

    200kg

    14

    Maximum power consumption

    1.0kW

    15

    safety performance requirements

    Compliant with GB15208.1-2018 standards

    16

    Electromagnetic Compatibility Requirements


    17

    Electrical Safety


    18

    Environmental adaptability


    19

    leakage current

    No more than 5.0mA

    20

    film security

    Compliant with ASA/ISO 1600 film safty standards

    21

    weight

    650kg

    22

    Working environment temperature/relative humidity

    5℃~40℃;0%~90%

    23

    Storage temperature/humidity

    -20℃~+60℃/10%~90%

    24

    Atmospheric pressure

    86kPa~106kPa

    25

    Working power

    AC220V+10%~-15%,50Hz±3Hz

    26

    operating system

    Windows XP. Win 7. Win 10 (optional)

    Software functions


    NO

    Item

    Functions

    1

    Calibration

    With fault self-checking function, the corresponding fault information can be displayed when a fault occurs

    2

    Image Processing

    With color/black and white, local increase, high penetration, low penetration, super increase, organic highlighting, inorganic highlighting, inverse color, brightening, darkening, gray sweeping, zooming, organic marking, suspicious object marking, edge enhancement processing functions

    3

    image pullback

    30 checked images can be played back

    4

    Number of image storage

    Can store 50,000 checked images

    5

    image management


    With image information query, opening, exporting, printing and other functions; exportable6 image formats (XF, PNG, BMP, JPEG, TIFF, GIF)

    6

    Operator management

    Operators can be added and deleted, and the operator name, group, password, enabling status can be modified, and the usage log can be exported.

    7

    Dangerous Image Insertion (TIP)

    You can add and delete TIP insert pictures, you can set the TIP enable status,Injection interval, floating range, motion judgment time, stationary judgment time; the user can check the operator by recording the information

    8

    Device diagnosis

    The key components of the equipment can be diagnosed through the diagnostic interface, including detectors, motor forward and reverse rotation, infrared sensors, special keyboards, etc.

    9

    system settings

    Programmable keys, imaging display (horizontal/vertical mirroring, maximum magnification Multiples, display recovery), scanning mode settings (two-way, direction, strong scanning, energy saving), auxiliary inspection (impenetrable, explosives, drugs), luggage Set the counter function

    10

    System device information


    display software version number, copyright, device model, factory number, scan Counting, power-on time, output time, image file storage capacity and other information

    11

    training function

    Automatic outsourcing training for new learners


    Key components

    NO

    Item

    Details

    1

    X-ray generator

    Anode voltage: 160kV, cooling method: sealed oil cooling

    2

    electric drum

    DC

    3

    computer


    CPU: Intel I3 3.3GHz

    Hard disk: 500G, memory: 2G

    4

    monitor

    21.5-inch LCD monitor, resolution: 1920x1080

    5

    Console & Keyboard

    console table, with dedicated keyboard


    Packaging accessories


    NO

    List

    Q’TY(PCS)

    1

    8065 complete machine

    1

    2

    User manual, warranty card + certificate, mouse pad, packing list, key, sticker

    1

    3

    Dedicated keyboard and mouse

    1

    4

    W/ console with monitor

    1

    5

    extended table

    1

    6

    power cable

    1
