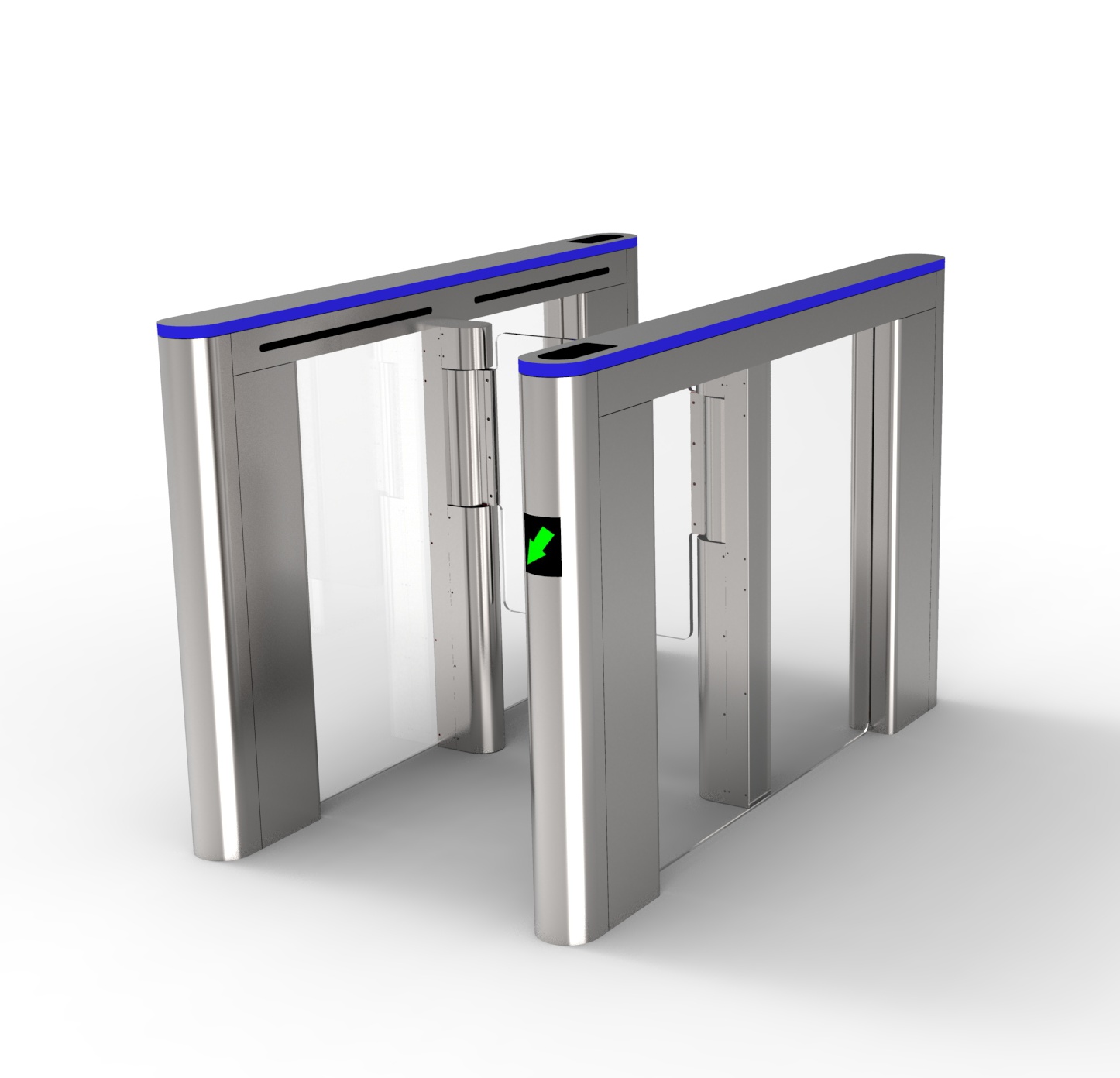

    304 Stainless Steel Automatic Turnstile Flap Barrier Gate Entrance Bidirectional

    Ask Lasest Price
    Brand Name : Zento
    Model Number : ZT-946
    Certification : CE, ISO9001, ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 50 sets per day
    Delivery Time : 5 working days
    • Product Details
    • Company Profile

    304 Stainless Steel Automatic Turnstile Flap Barrier Gate Entrance Bidirectional

    Top Quality Speed Turnstile Gate Custom Promotion Entrance Security Automatic


    Function:

    (1) Automatic return function: After the passage process is completed, the brake wings automatically return to the initial blocking position.


    (2) Power-off and opening function: When the power is off, the system will automatically open the brake wings to open, which is convenient for evacuation of the crowd and meets fire protection requirements.


    (3) Anti-illegal intrusion function: When the card is invalid, there is no card swiping, or the passage is forbidden, the forcible entry into the channel will be regarded as illegal intrusion, and the system will automatically alarm and close the flap.


    (4) Anti-reverse intrusion function: Before the end of the passage process in a certain direction, pedestrians entering the passage from the opposite direction will be regarded as reverse intrusion, the system will automatically alarm and close the wing.


    (5) Anti-trailing function: The photoelectric switch detects the pedestrian traffic situation, and detects the following phenomenon (the people behind are close to the person in front, intending to pass without swiping the card), the system will automatically alarm and close the brake wings.


    (6) Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, which can be linked with other alarm monitoring equipment and can be heard.


    (7) Anti-pinching and anti-collision function:

    A. Infrared anti-pinch: Install multiple pairs of photoelectric switches near the area where the wing is active (anti-pinch area). Once a person or object is detected in the anti-pinch area, the wing automatically stops; The flaps continued to move.

    Extensible functions:

    1. Casing and gate size can be lengthened

    2. Speech reminder

    3. Normal close or normal open adjustable

    4. Light, sound alarm


    Speed lane turnstile gate specification

    Arm Length550-900mm(customized)
    Dry Contact12V
    Swing Arm MartialAcrylic
    Acrylic thickness10mm
    Rated Power120W
    Operating Temperature-25℃ ~ +60℃, RH ≤90%
    Related Humidity≥90%RH
    Communication InterfaceRS485,distance ≤1200m
    Power SupplyAC 220V/110V ±10% 50/60MHZ (optional)
    Opening Transit Speed65-70 persons per minute
    Closing Transit Speed65-70 per minute
