SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm

    Buy cheap SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm from wholesalers

    Buy cheap SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm from wholesalers
    • Buy cheap SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm from wholesalers
    • Buy cheap SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm from wholesalers
    • Buy cheap SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm from wholesalers
    • Buy cheap SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm from wholesalers

    SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm

    Ask Lasest Price
    Brand Name : zento
    Model Number : ZT-955
    Certification : CE, ROHS, ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 550 unit per month
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    SS304 Face Recognition Sliding Gate Turnstile Passage Width 550mm

    Stainless Steel 304 Full Height Sliding Turnstile Face Recognition With Card Reader Access Control


    Intellgient sliding turnstile is the intelligent access management produced by our company after several years R & D , this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.


    The drum shape sliding gate ZT-955, the whole profile is stamped from the standard SS304, the top is made from Acrylic, luxury, beautiful and generous shape, rust proof, durable, resisting external damage, adapoting standard electrical interface can easily integrate the bar code card, ID card, IC card and other card readers into the equipment, to provide civilized and orderly access for pedestrians, at the same time can prevent unauthorized persons access.In addition, the system is specially designed the function to meet the fire prevention requirements to ensure that the passage is unimpeded, convenient for pedestrians timely evacuating in emergency


    Case Material
    SS304(1.5mm, 2.0mm optional)/Baking varnish
    Production Process
    CNC Laser Cutting
    Size

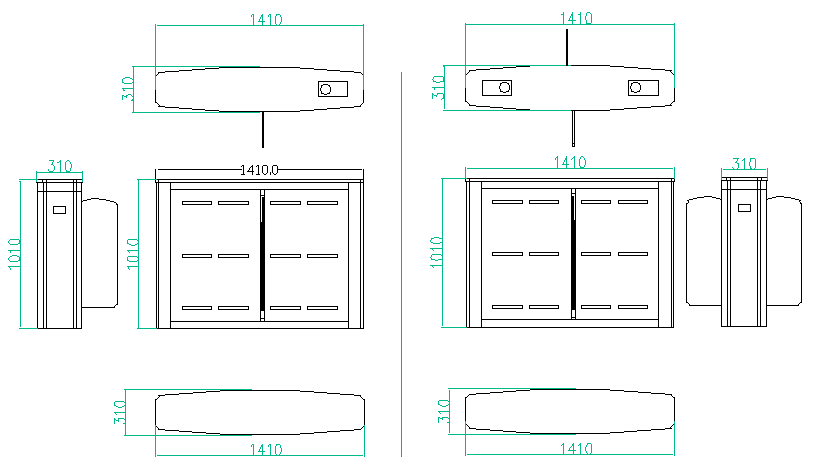

    1410*310*1010mm(Customization acceptable)
    Power input
    AC100-240V,50/60HZ
    Operation voltage
    DC24V, 3A, Power: 40W( Brushless Motor Optional)
    Electromagentic
    Duty Cycle 100%
    Passage Width
    550mm
    Flap Size
    300*1200mm(Customization acceptable for heigth)
    Flap Material
    Acrylic
    Passage direction
    Single directional/Bi-directional(Optional)
    Operating time
    1S
    Throughput Rate
    30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)
    Reset Time after Power on
    3S
    MCBF
    5,000,000 Cycles
    Reset Time after failure
    10S
    Automatic Reset Function
    Automatically locked within set time(Time Adjustable)
    Operation Humidity
    0~90%(No Freezing)
    Operation Temperature
    -10℃~+50℃
    Operation Eenvironment
    Indoor,Outdoor(Shelter)
    Protection Level
    IP45
    Communication Interface
    Standard RS485 interface, distance ≤1200 meters
    Input Interface
    Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

    Sliding Turnstile Gate Feature:

    1. Adopting special ARM core micro CPU circuit and digital positioning technology, the stable start and control,the more accurate brake arm automatic control ability.
    2. Smoothly Running, small noise, simple and reliable restructure.
    3. The surface of the movement unit atopting anti-rust and anti-corrosion treatment, durable. Hydraulic movement unit is recommended for scenic spot ticketchecking advice.
    4. Control panel with counting function, LCD/LED display function (optional)
    5. High precision sensor group and intelligent recognition algorithm design can identify the number and direction of pedstrians in access very well, greatly improving the accuracy of anti-pinching and anti-trailing.Multi-point detection, more suitable for children or pedstrians with luggage going through.
    6. Intelligent voice and sound prompts make the device more user-friendly and easier to use.
    7. With auto malfunction inspection and alarm function, convenient for user maintenance and use.
    8. Mechanical anti-pinch, infrared sensor anti-pinch function, in the process of turnstile reset obstruction, the motor automatically stop Operation within the set time, reseting after defacult delay time until the reset, small force(≤2kg).
    9. Sound and light alarm function: including illegal break-in, trailing alarm.
    10. Anti - impact function, the flap automatic locked without the open signal.
    11. With automatic reset function, open the gate, the system will automatically cancel the user's access authority if the pedestrians no going through in the set time, automatic reset in 5 seconds after open.
    12. Infrared sensor reset, infrared sensor anti-pinch function (standard 4 pairs of infrared ray).
    13. After power off, the access automatically open and automatically closed after power on.
    14. Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments.
    15. Single-direction or Bi-direction control pedestrians access, infrared sensor access.
    16. Available for remote control and management directly by computer.
