    Lane Width 550mm Electronic Train Station Turnstile Gates 30-40 Persons/Min

    Ask Lasest Price
    Brand Name : Zento
    Model Number : ZT-801A
    Certification : CE ISO9001 ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100 pcs per week
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    Lane Width 550mm Electronic Train Station Turnstile Gates 30-40 Persons/Min

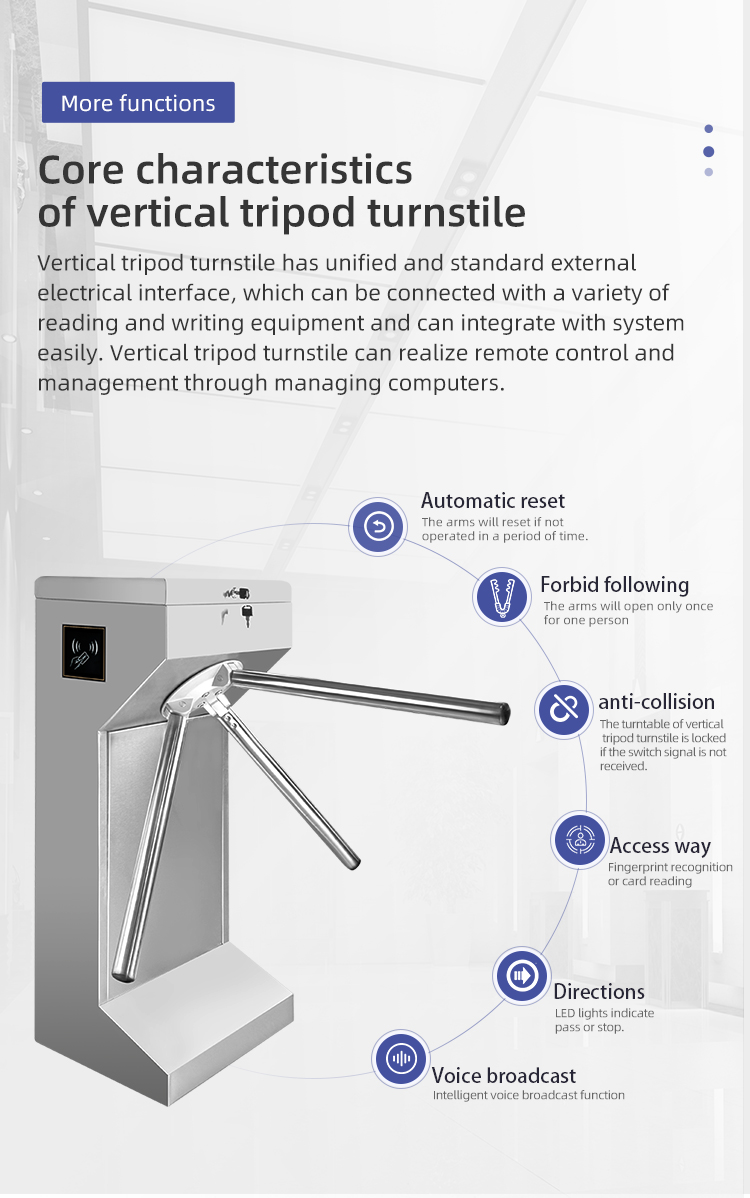

    Subways Stations Semi-Automatic Manual Tripod Turnstile CE Approved Luxury Electronic Gate

    1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    5. When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection. When power on, the arm can lift by hand.
    6. Emergency configuration: the tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency
    7. Control panel with count and LED digital function. Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing.
    8. It can be used for intelligent control and management of the passage after equipped with different access control system.
    9. A valid lock action can allow one passage at one time. It will lock automatically if passage through turnstile is not completed within pre-set time, the set time(from 2-60 seconds, by default, it is 10 seconds) can be set up with the built-in small keyboard or software.
    10. Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).


    Parameter:

    Name
    Fully Automatic Tripod Turnstile
    Body Material
    304 stainless steel, thickness is no less than 1.5mm
    Overall dimension
    420*300*980mm
    Working Voltage
    AC110/AC220±10% V/50±10% Hz
    Optional Control type
    IC Card, ID Card, QR Code, Finger Print,Face Recognition
    Working mode
    one directional or bi-direcitonal
    Working temperature
    -15°C--+70°C
    Relative humidity
    ≤95%, no-condensation
    Temprature rise of motor
    ΔT15°
    Number of statistics
    judging of encorder
    Opertaing Time
    0.2s
    Passing speed
    45 people/min, no pause and pass freely 60 people/min
    Noise
    <50DB
    Environment
    indoor
    Lighting protection grade
    3 level
    MCBF
    5,000,000 cycle
    Operating places
    Government agency, Residential area, School,etc
    Guarantee
    1 Year


    Function&Features:


    Functions and features
    full-auto
    semi-auto
    manual
    1,Malfunction self-check and alarm reminder, ease of maitenance and use
    ×
    ×
    2,Running method can be set through small buttons on the control panel
    ×
    3,How arm reacts in emergency
    drop automatically
    drop automatically
    no movement
    4,How arm reacts when power on
    go up automatically
    go up by hand
    no movement
    5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60
    adjustable)
    ×
    6,Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on
    ×
    7,Unique positioning, self reset, one arm always in the horizontal level
    ×
    8,LED lamp indicator
    ×
    9,when open signal is given, arm rotate to a certain degree
    ×
    ×
    10,how arm reacts when people passing
    rotate automatically
    push by hand
    push by hand
    11,one direction or bi-direction flow control
    adjust by hand
    12,work directly with PC for remote control and management
    ×

    Advantages

    · Support all-in-one ticket system, suitable for water park, amusement park.

    · Support multi check in methods, like IC card, fingerprint, QR code and tickets

    · Automatic detection for malfunction.

    · Adjustable auto-delay closing.

    · Infrared photocells for safety access.

    · Alarm for unauthorized access.

    · Anti-reversing passing.


    FAQ:


    Q: Did your system have software interface?
    A: Yes. We have our own management software.
    Q: How does this system link to other system?
    A: Equipment could link to others by TCP/IP.
    Q:Does this combo can add extra access control method?
    A: Yes,we can extend card reader,fingerprint reader and other method to connect wire with face recognition terminal.
    Q: What will happened if power was cut off?
    A: Once cut off,the turnstile gates arm would be drop off,it can go through without control.
