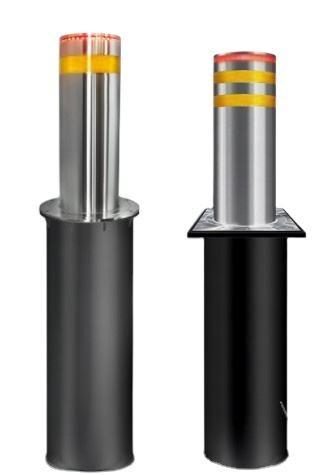

Telescopic Security Hydraulic Rising Bollards
Automatic bollard:
This is new designed electric-hydraulic operated retractable
bollard for roadblock management.
The system can be quickly and easily operated, suitable for both
security and access control applications.
The system is designed to bring convenience and enhancements to
higher level security. It is ideal choice for universities,
pedestrian sidewalks, parking lots, government buildings, gyms,
amusement parks, airports, shopping centers, hospitals, and
occasions with high traffic flow.
Product Feature
Product parameters
Control System | Integrated Electro- Hydraulic |
Passing pressure: | ≤80- 120 tons container trucks |
Voltage: | AC220V 50Hz Integrated |
System Dynamic power | 350W Integrated |
Rise time : | ≤3-4S (adjustable) (adjustable) |
fall time : | ≤3-4S (adjustable) |
Material: | 304 stainless steel |
Rising height: | 600mm |
Diameter | 168mm,219mm,273mm (can be customized) |
External housing size | 430*430*1130mm/500*500*900mm |
Thickness of bollard | 6mm,8mm,10mm.12mm,15mm,30mm (optional) |
Working Temperature : | -35℃~75℃(suitable) |
Storage Environment : | 10℃~65℃, Waterproof and moisture-proof |
Solenoid valve voltage : | 24V |
Remote control distance | Approx .50m-100m |
Running noise | ≤60 db |
Waterproof: | IP68, double sealed |
Weight: | 200 KG approx. |
![]() |
