Brand Name : | Zento |
Model Number : | ZT-S0052 |
Certification : | CE RoHS |
Price : | Negotiable |
Payment Terms : | L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 100set/week |
Delivery Time : | 7 |

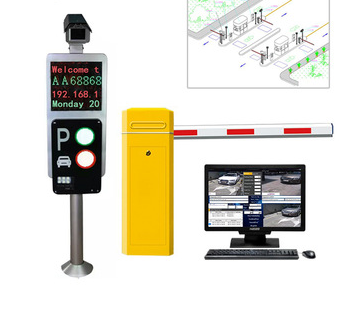

LPR Parking Control Automatic Vehicle License Plate Recognition
System
License Plate Recognition technology (License Plate Recognition,
LPR) is based on the computer technology, image processing
technology, and the fuzzy Recognition, to build the characteristics
of the vehicle model, identify the vehicles' characteristic, such
as Plate, model, color, etc. It can automatically extract the plate
image from an image, it USES the advanced image processing
technology, pattern recognition and artificial intelligence to the
collected images information and processing, it can be identify the
license plate Numbers, letters and Chinese characters, and directly
given recognition result, makes the system become a reality.
Size | Display:150×200mm Face Display:150×200mm Total Size:1400×200×130mm |
Operating temperature | -25℃ ~+60℃, RH ≤90% |
Related humidity | ≥90%RH |
Normal work life | Five years |
Power supply | AC 220V/110V ±10% 50/60MHZ(optional) |
Operating system | Win XP, Win7, Win8, Win10, 32/62 bits |
Power interface | DC12V |
Identification accuracy | >99% |
Voice prompt | 0.2 seconds |
Details | IN/GND(AUDIO) OUT(AUDIO) NETWORK |
License plate recognition system character: License Plate Recognition Software LPR Camera ANPR Camera
1.Can identify vehicle license text and figures
2.Can identify one line and two lines license plate number
3.Can identify Chinese and English of license plate number
4.Can recognize 0-2 letters and numbers 1 to 4 for the license
plate number
5.The database can store the capture image, license plate number,
lane number and the time of vehicle through record.
6.License plate number entrance and exit record can report output
7.Support English, Korean, Simplified Chinese and Traditional
Chinese and other language customizable.
8.Image size: 768*576pixels
9.Front size: 16*16-48*64 pixels
10.Camera gun level angle: the maximum angle 25 degree into the
drive lane
11.Camera gun vertical angle: the maximum angle 25 degree into the
horizontal
12.Minimum brightness: 500lux
Product details
1. High resolution camera
(1) 1/1.8 Progressive Scan CMOS
(2) 2.1 MP high sensitivity CMOSSensor1920x1080 resolution 30fps
realtime
(3) 4pcs white or IRLEDS arrayBriahtness adiustable Motorized Zoom
and Focus 6~22mm lens2.8-12mm Optional
2. Perfect appearance
The entrance integrates the remaining parking number
displayfunction. With tempered glass plate, It can be touched as
you like. Adopting automobile grade mold manufacturing process, it
makes the assembly unit dynamic fit.
Using water-proof materialit can also work well in rainy and wet
climate.
3. Offline deployment option
When the computer fails to work,the offline deploymentoption makes the systemcontinueto function well and the system can also reserve 6000 records. The records would recover and upload automatically after fault removed.
How LPR car parking system works
1. Entrance procedure
A vehicle stops in front of the entrance, just before the barrier.
The sensor detects its presence and a dedicated camera
automatically recognizes and records the number plate, date and
time of entry. The remote management system captures the data
provided by the camera and enters it into the database. If already
registered, the subscriber’s membership information and reservation
data are added. The entrance barrier rises allowing the driver
access to the car park. The barrier lowers automatically, once a
vehicle passes the safety sensor.
Drivers of vehicles registered with an online account can enter and
exit nominated car parks unimpeded. Parking charges are
automatically debited from their nominated credit/debit cards at
regular intervals via an online account.
2. Exit procedure
A vehicle stops at the exit, just before the barrier. The sensor
detects its presence and the dedicated camera verifies the number
plate against payment information, or the listing of the vehicle on
the database (e.g. subscribers). The management system validates
correct payment, or entitlement to park without payment to enable
exit. The exit barrier rises, allowing the driver to leave the car
park. The barrier lowers automatically once a vehicle passes the
safety sensor.
Our company has our own software management platform and has our
own independent intellectual property rights in algorithms and
software research and development, so we can completely process
data ( identify different license plates, i.e. characters,
different charging standards: temporary charging, monthly charging,
VIP charging, etc. ) and store data ( storage method, duration,
interval, etc. ) according to the needs of different customers.
![]() |
