    RS485 Access Control Full Height Turnstile Gate With QR Code Reader

    Ask Lasest Price
    Brand Name : zento
    Model Number : ZT-827A
    Certification : CE, ROHS, ISO9001
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 400 unit per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    RS485 Access Control Full Height Turnstile Gate With QR Code Reader

    Turnstile With Qr Subway Full Height Turnstile Price Full Height Gate System Access Gate Turnstile


    Turnstile With Qr Subway Full Height Turnstile Price


    We are manufacturer of turnstile with qr, tripod turnstile, waist height turnstile,Speed gate, Flap turnstile, Swing Turnstile, Barrier Gate, LPR parking system, Rising bollards etc. We can supply you our standard turnstile gate and customized your own design turnstiles for you.


    A full height turnstile gate is a type of access control device used to manage the flow of people in and out of secured areas. It consists of a revolving gate that extends from floor to ceiling, creating a physical barrier between two spaces. This type of turnstile effectively prevents unauthorized individuals from bypassing the gate by climbing over or crawling under it. Full height turnstile gates are often installed in high-security locations such as airports, government buildings, stadiums, or industrial facilities, where strict access control is required.

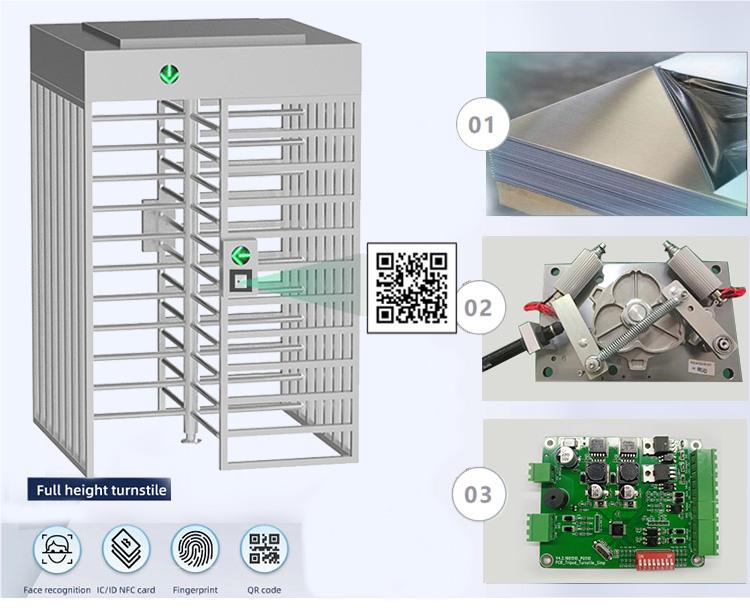

    304 stainless steel snow sand
    >Anti-rust / Wear / High temperature / Corrosion resistance


    Sino mould full height turnstile machine core>Die-casting aluminum alloy / Always on power square solenoid
    >Good quality and low price / Durable


    Turnstile control board
    >LED directional indicator
    >Dry contact signal
    >Connect fire alarm signal
    >Memory function
    >13 kinds gate mode of entry and exit>Counting function
    >With sound and light alarm function
    >Support secondary development


    We can supply you turnstile with qr with controller system or mechanism only.


    Turnstile with QR Function:

    • Through the built-in small press disk on the main control board, the running state of the programmable device.

    • Unique two-way anti-inversion function

    • anti-scour function, when the opening signal is not received, the channel bar will be locked automatically.

    • the channel is automatically unlocked after the power is cut off, and the function of free rotation can meet the requirements of fire fighting, and the channel is locked and closed automatically after the power is turned on.

    • with automatic reset function, after opening the gate, when pedestrians do not pass within a specified period of time, the system will automatically cancel the pedestrian traffic authority, and the reset time is 1S~60S adjustable (the default time of the system is 10s).

    Turnstile with QR Technical Parameter:


    Power voltageAC220 ±10%V/50 ±10%HZOpen angle120°/90°
    Communication mode232/485 TCP/TPPass speed30 person/minutes
    MovementHydraulic movementStructure304 stainless steel
    Relative humidityNone-condensationOpen directionSingle and Double(optional)
    Input signal12v DC level or Dry contact signalWork environmentOutdoo(Canopy)and indoor
    Working Current≤2000mATemperature-10 ℃-- 50 ℃
    Working NoiseBelow 65 decibelsRelative humidity≤90%, non-condensing

    Access Control Turnstile System·Rugum APW-RM600


    Appearance, Dimension, Material & Surface Finish


    Appearance: customized according to customer’s requirement.


    Stainless steel thickness of the cabinet: customized within 1.5~3.0mm.


    Material of the cabinet: 304 / 316 grade stainless steel.


    Material of the gate: tempered glass / organic glass / polycarbonate, and color can be customized.


    System Integration
    Integrate with access control system required by customers, and built-in reader appointed by customer.


    Integrate with visitor management system.


    Integrate with ticketing system.


    Direction Indicator


    The installation position of direction indicator can be adjusted.


    The pattern of direction indicator can be customized.


    Function
    Built-in or external counter
    TCP / IP communication function
    Audible and visual alarm function
