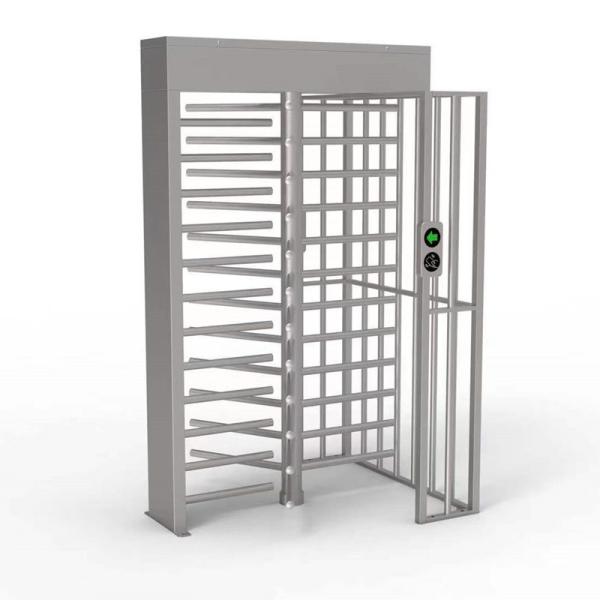

The Portable full height turnstile barrier gate is made of 304/316
stainless steel plate stamping forming,appearance modelling
beautiful generous,anti-rust,durable,and external systems used in
standard electrical interface, it can be disassembled into small
pieces for packaging, therefore, the problerm of large volume and
waste of frieght is solved, it can be convenient to barcode card,
ID card, IC card read-write equipment, face recognition, QR code,
fingerprint machine such as intergrated in this device, thus for
staff and orderly way of civilization, and can put an end to
illegal personnel in and out, at the same time, in order to meet
the requirements of the fire escape, in case of an emergency power
lever,organize personnel evacuation.
Access Control Turnstile System·Rugum APW-RM600
Appearance, Dimension, Material & Surface Finish
Appearance: customized according to customer’s requirement.
Stainless steel thickness of the cabinet: customized within
1.5~3.0mm.
Material of the cabinet: 304 / 316 grade stainless steel.
Material of the gate: tempered glass / organic glass /
polycarbonate, and color can be customized.
System Integration
Integrate with access control system required by customers, and
built-in reader appointed by customer.
Integrate with visitor management system.
Integrate with ticketing system.
Direction Indicator
The installation position of direction indicator can be adjusted.
The pattern of direction indicator can be customized.
Function
Built-in or external counter
TCP / IP communication function
Audible and visual alarm function
Customized extended functions:
1. Counting and alarm functions;
2. The material of the flap (retractable arm) is acrylic or soft
flap. The colors are red, black and blue. The amount can be
customized separately
3. Case material is mainly 304 stainless steel, other materials can
also be customized
4. Remote control switch
5. Dynamic face recognition
6. Can add emergency escape function, in the case of special
emergency, start by remote button
7. The communication interface is mainly RS232 / RS485, other
interfaces
8. Box thickness standard 1.5mm can be customized 2.0mm
9. Fingerprint recognition of time attendance
10. QR code pass
Construction: | square frame / fine profile stainless steel tube ,90° rotation |
Working voltage: | AC220±10 V 50AC220±10 per cent HZ |
Driving equipment: | DC24V DC solenoid valve |
Channel case size : | 2400 long /1450 wide /2200 high (MM)(customizable according to site
channel width) |
Direction of passage: | One-way or two-way |
Working environment: | indoor, outdoor (shade)-25℃~70℃ Relative humidity :90%≤, no
condensation |
Gate opening and closing time : | 1-2 seconds |
Speed : | 30 person/min |
Time required to enter traffic after power on : | 3 seconds |
Function:
(1) Running stably without noise and mechanical impact.
(2) The passing person number of the persons can be set.
(3) Several ways of working molds for your demand chosen.
(4) Bidirection, or one direction permitted, one forbidden, or one
direction charged, one for free, and all the working molds set by
the buttons in the main control board.
(5) Beam falling and lifting can be controlled in far distance so
to satisfy the special requirement of the users and the request of
fire protection.
(6) Direction-guide lights in the turnstile to tell you whether the
direction to go or not.
(7) The standard electrical interface connected with various kinds
of reader and writer equipment.
(8) All the functions realized in one integration machine and
controlled and managed by the computer in the far distance.
(9) The number of the persons passed by can be counted
automatically which can also be displayed in LED
(10) Beam can be lifted and fall when power is cut-off.
(11) The function with or without card-reading memory cab be set
according to your demand.
(12) Self-check and alarm for convenienting to operate.
FAQ:
Q: Are you manufacturer or trader?
A: We are manufacturer, we have own factory in Shenzhen, we have
independent department for purchasing, producing, processing,
testing, packing, storing , and transportation, believe our team is
best team in china.
Q. Do you sell the accessories for Products ?
A: Yes. We have Match the parts for our testing equipment. If our
machines damages by fire, water flood, earthquakes, unsteady of
power and other natural disasters, we are willing supply match
parts with lowest price for you.
Q. How about the packing for product?
A: Is it easy damaged during transportation? Our packing is Standard
Export ploy Wooden Case. Every prepackage have a plastic bags cover
and carton before making the wooden case .
Q. What’s your main product?
A: We professional in turnstile gate and parking management system,
parking barrier gate, hydraulic rising bollard etc.
Q. Where is your main sales market?
A: Our turnsitle gate and parking system customer all over the world.
Our turnstile gate and parking system mainly in Southeast of Asia.
South of America.Middle east. East Europe and Africa Our turnstile
gate and parking system, parking barrier mainly customers are from
Australia. USA. All Europe and Asia
Q. How about your after-sales policy?
A: Customer first is our always principle . All of our products
normal warranty is 24months. We give necessary back or video
guidance for daily problems. If massive products occur big quality
problems. Our technical and engineer support overseas service .
Q. Do you accept customer Logo and customized ?
A: we accept kinds of customized and logo of all of our products for
customers
