    ZENTO Heavy Duty Swing Door Operator 40W Motor Power F Level 155°C Thermal Protection 350kgs Max Weight for Commercial

    Ask Lasest Price
    Brand Name : Zento
    Model Number : ZT-D02
    Certification : CE,ROHS, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200/week
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

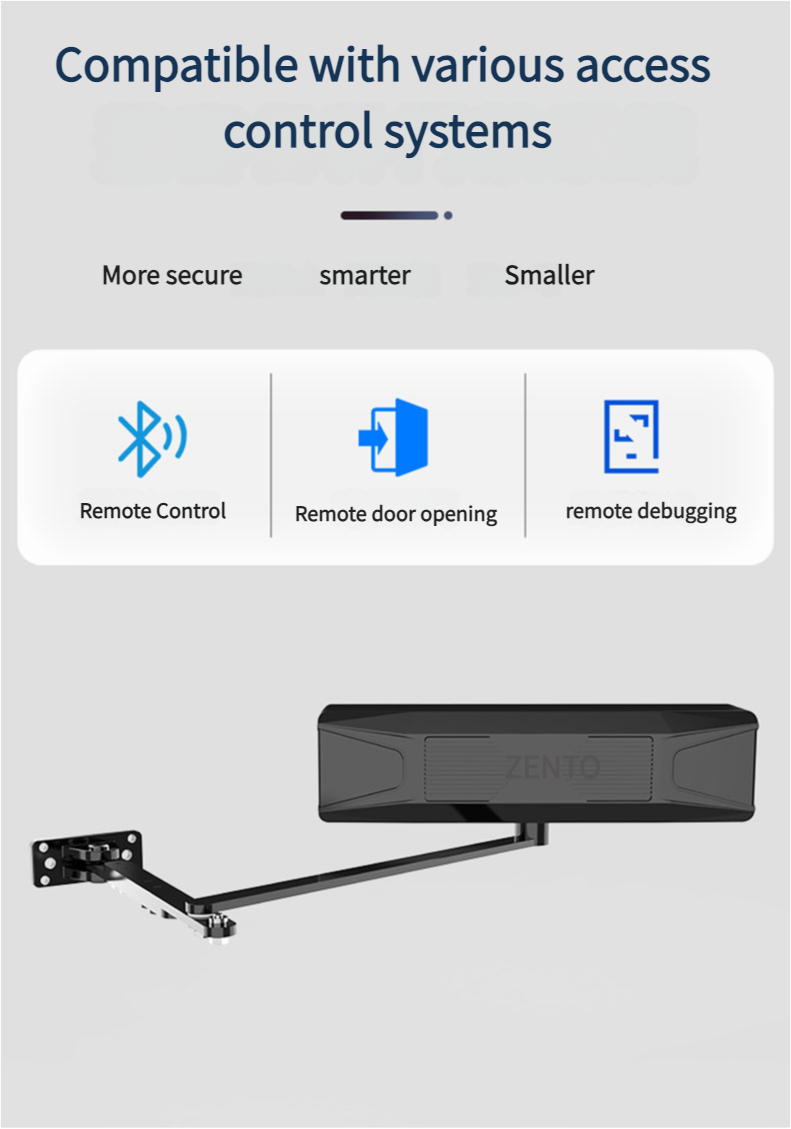

    ZENTO Heavy Duty Swing Door Operator 40W Motor Power F Level 155°C Thermal Protection 350kgs Max Weight for Commercial

    ZENTO Heavy Duty Max Weight 350kgs Built-in Spring Commercial Best Swing Horizontal Door Operator


    Features of automatic door opener:


    Reasonable stress: the door machine is installed on the side away from the door hinge, and the driving force acts directly on the door in the closing direction. Energy-saving and efficient.


    Unique slide mechanism: it can automatically adapt to slightly undulating road surfaces (adaptability is 90mm). If there are special requirements, the adaptability can reach 300mm, instead of burying tracks.


    Large opening angle: the door can be opened to any angle without being restricted by the door machine itself.


    Automatic locking device: the door is automatically locked when it is closed, without the need for an additional electric lock.


    Manual operation: in case of power outage, it is convenient to switch to manual operation with a special key.

    Advantages of ZENTO automatic door opener:


    * Rebound adjustment when encountering resistance


    * Delay adjustment of door opening


    * Learning of door opening angle


    * Delay door opening function


    * Remote door locking function

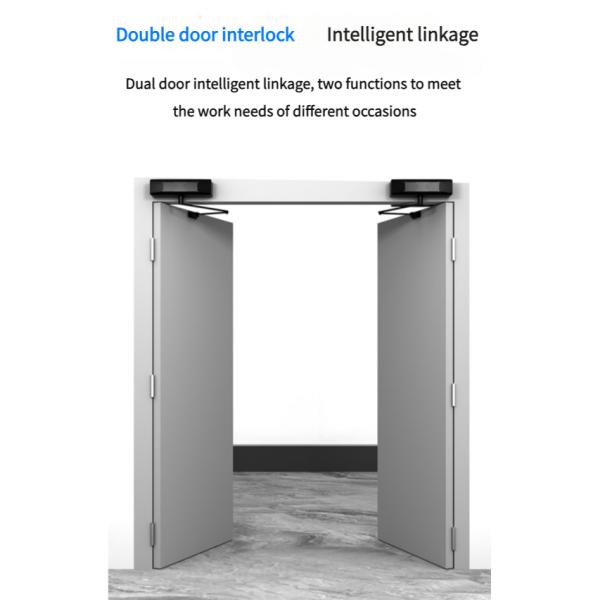

    * Double door linkage function


    * Mother-child door function


    * Adjustable opening and closing speed


    * Support electric lock


    * Support secondary development

    Automatic door opener function:


    Single or double opening selection: Through remote control operation, single leaf can be opened and closed independently or both leaves can be opened and closed simultaneously.


    Button lock: Through remote control operation, all buttons on the control panel can be locked to prevent theft.


    Repeated operation limit: Prevent over-opening of the door and damage to the door caused by misoperation.

    Automatic stop when encountering obstacles: The door opener automatically stops when encountering obstacles such as pedestrians and vehicles to ensure safety.


    In-place prompt: When the door is in place and locked reliably, the controller will emit a "beep" prompt sound.


    Time protection: The single operation time of the automatic door opener is set within 60 seconds to ensure the safety of the motor.


    Infrared protection: Through the external infrared detector, pedestrians or vehicles pass by, and it will stop automatically (select).

    ZENTO Automatic Door Parameter

    Power supply voltage

    220VAC+15%50HZ

    Motor working voltage

    24VDC

    Angular velocity

    69.7°/S

    Motor thermal protection

    F level 155°C

    Use frequency

    continuous use below 70°C

    Use environment

    indoor or outdoor

    Body size

    355.7-89.6-105.7mm

    Packaging size

    400*280*110mm

    Equipment packaging weight

    6.4kg

    Motor power

    Motor power: 40W

    Rated torque

    24.6Nm

    Maximum door opening angle

    +90

    Maximum door width

    2m (single leaf)

    Maximum load-bearing capacity

    150kg

    Operation noise

    <60dB

    Working environment temperature

    -25-70°C

    Fixed base size

    355.5*89mm

    Drive mode

    crank connecting rod drive

    ZENTO Automatic Door Product List you will recived
